- Connection
- Internal conical
- source: archetype geometry
- Cone angle
- 8°
- source: modeled (published range 5–12°)
- Screw seating torque
- 35 Ncm
- source: typical IFU value
- Platform switch
- 0.25 mm
- source: modeled to published range
- Micro-gap at IAJ
- < 10 µm
- source: modeled to published in-vitro range
Archetype geometry. Every value above carries its source, and every assumption is stated on the inspectable demo.
The connection sells the system, and it's the one thing a catalog can't show.
A photo can't show the joint
Where does the load actually go: down the conical seat, or into the hex? How deep does the abutment engage before the screw takes over? Every dentist evaluating a system asks some version of this, and a brochure photo can't answer it. A cutaway can.
Spec sheets don't switch loyalties
A dentist already placing another brand won't change for a bullet list. Let them see your platform switch, conical seal, and screw-joint mechanics move, and the difference becomes obvious instead of debatable.
You can't hand over a sectioned implant
No rep carries a cut-open titanium part to every chair. Hand them a tablet instead: every system in your line, sliced open and rotating, on a link that works anywhere.
We model the parts a clinician actually evaluates.
Every cutaway is built from your geometry, with the load-bearing detail right. Don't take the list on faith. Click a feature and check it on the model.
click a feature and the viewer highlights the part
Three connection types, sectioned and inspectable.
Internal conical, external hex, and Morse taper: each is a live cutaway you can rotate and slice, built from published geometry. The start of a library that grows with every connection type we author. Your own system is built privately, from your CAD, under agreement.

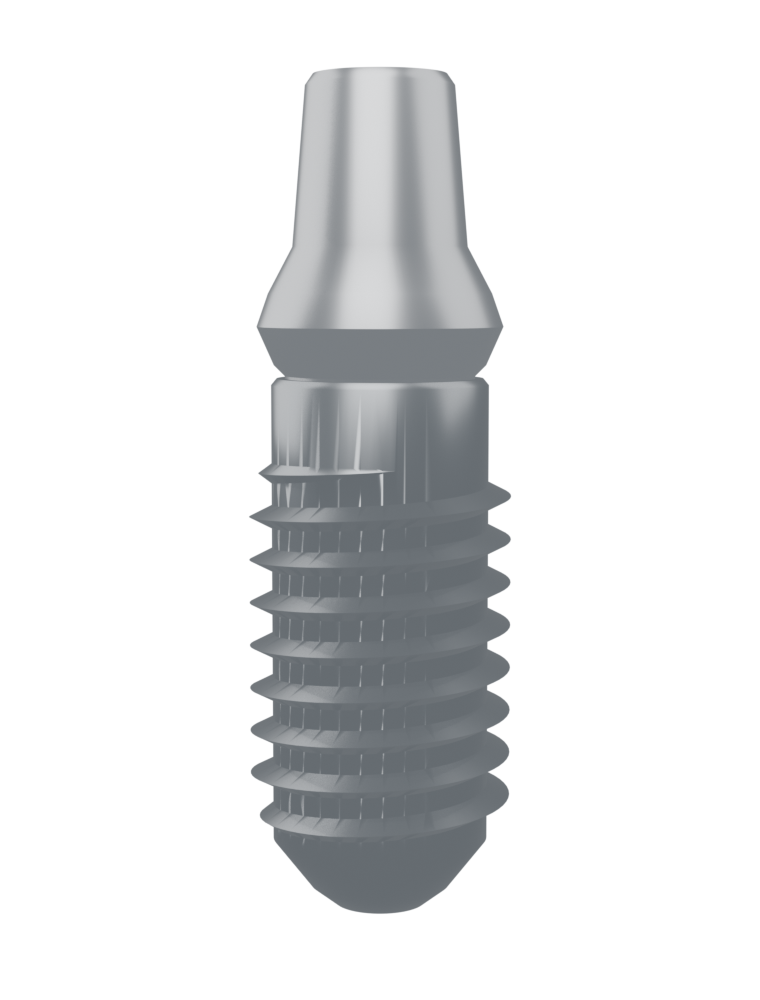

Internal conical connection
Abutment · anti-rotation index · screw preload

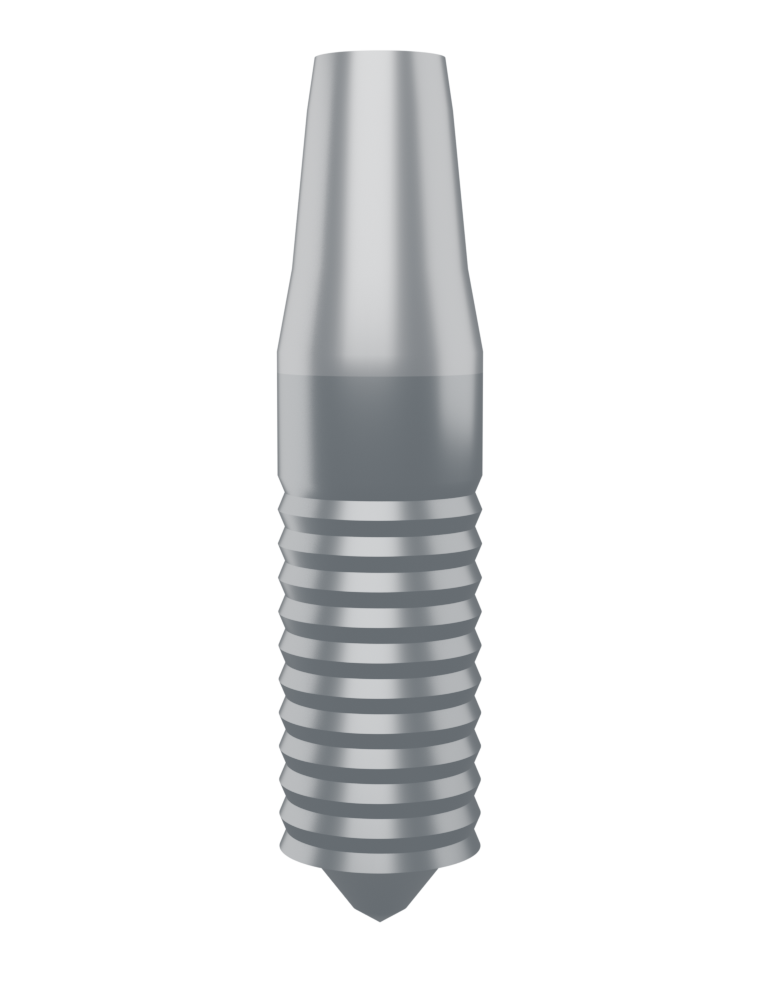

Inspect it→External hex connection
Flat platform · external hex index · screw

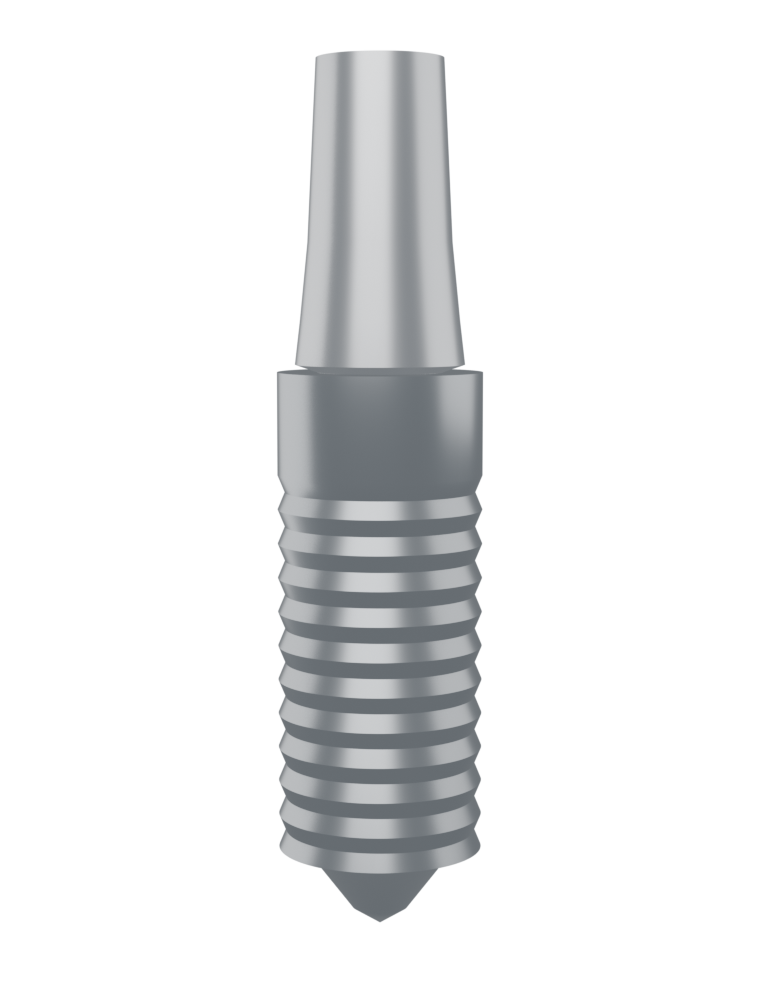

Inspect it→Morse taper connection
Deep conical friction seal · screw preload
Inspect it→Every cutaway is built from published dimensional data (your CAD or IFU, ISO/ASTM geometry), with taper, thread profile, and connection geometry matched to source. Where exact internal geometry is proprietary, we model to published tolerances and flag every assumption.
From your implant to an interactive cutaway in about ten days.
Send us a system
CAD if you have it (STEP, SLDPRT, IGES), or just the parts and a few photos. We rebuild the geometry from whatever you can share.
We model the cutaway
About ten days per system. You get a web-embeddable interactive viewer of your connection, sectioned and labeled.
Reps open it chairside
Share a link, drop it on the product page, or hand it to the field team on a tablet. We can report which parts dentists explore most.
Want your system as an interactive cutaway? Talk to us.
Tell us about your system: CAD (STEP, SLDPRT, IGES) or just the parts and a few photos. We reply within one business day. Anything you share is handled under NDA and never shown publicly without your written approval.
